1 pcs/package
A unique solution with 6+ different breaching options
6+ Methods & Techniques
- Explosive breaching (Pushing charges)
- Explosive breaching (Cutting charges)
- Hydraulic breaching
- Thermal breaching
- Cut off cutting breaching
- Glass breaching
These six core methods cover both rapid entry and controlled access across multiple scenarios.
Detailed instructional materials, including training videos and method-specific guidance, are available. Due to the sensitive nature of this content, access is restricted and provided only upon direct request.
For further information or to request access to materials, please contact us.

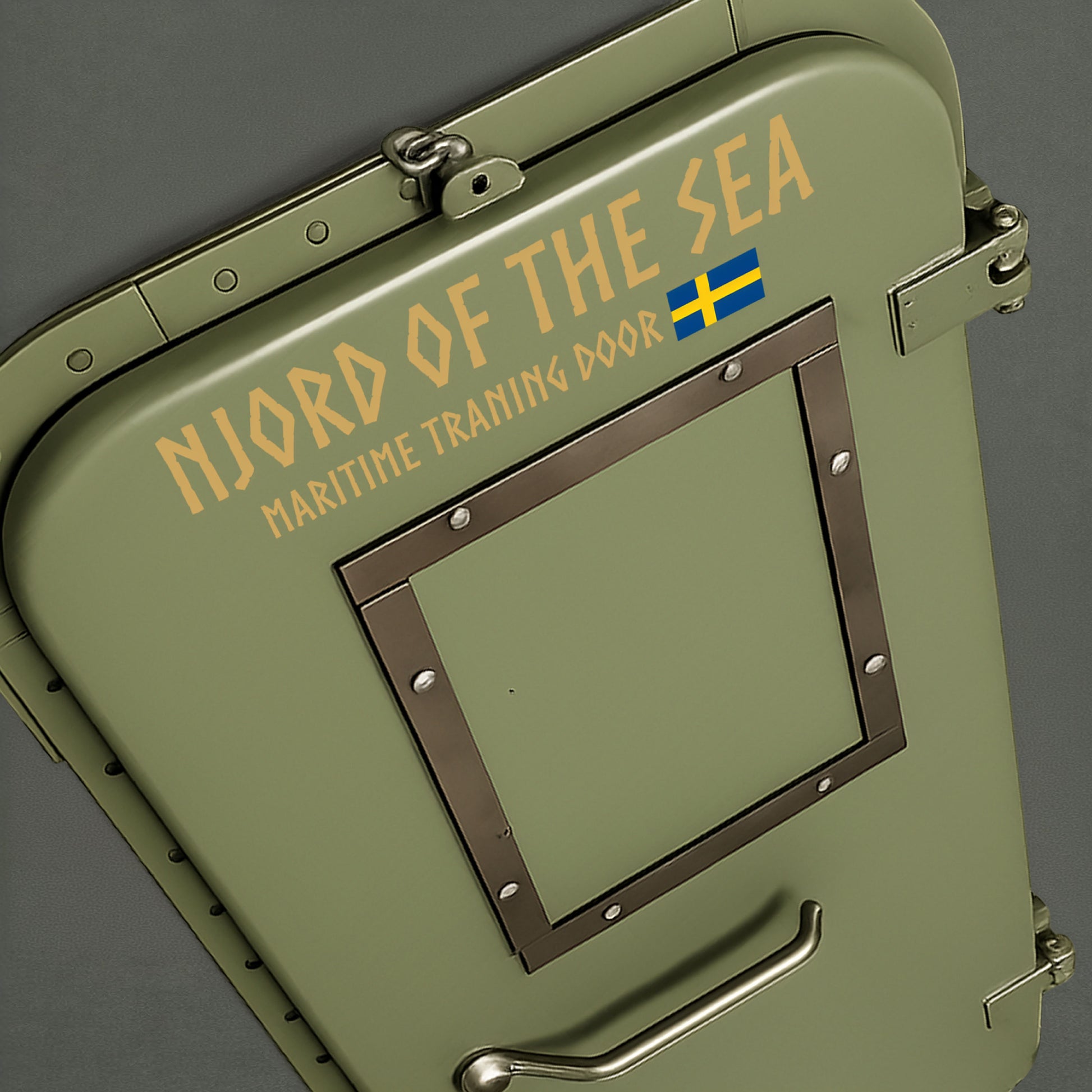

The construction of te “Njord of The Sea” follows the European standard of watertight certified Ship Doors. A starter kit with consumable parts is included with the door
PATENT PENDING
Specifications
- Width: 870 mm Door without stand
- Width 990 mm including stand
- Height: 1 835 mm
- Weight: 160 kg excluded stand
- Weight 210 kg including stand
- Transport pallet: 2100x1200 mm
- The leaf is made of steel S355J2+N.
- The door frame is made of steel S355JR+N.
- Door frames are made of angle bar and flat bar.

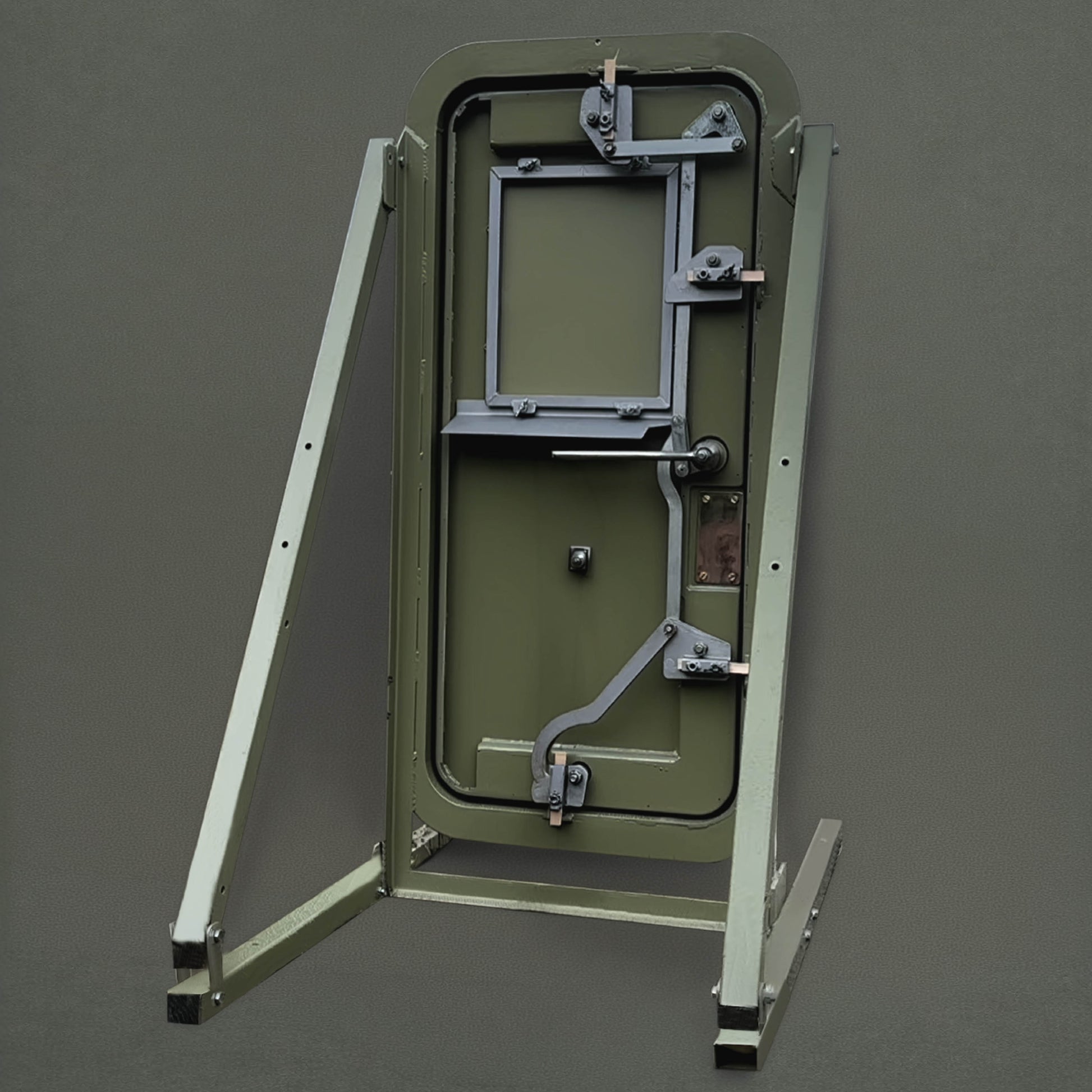

- Closing mechanism elements are made of galvanized steel as standard.

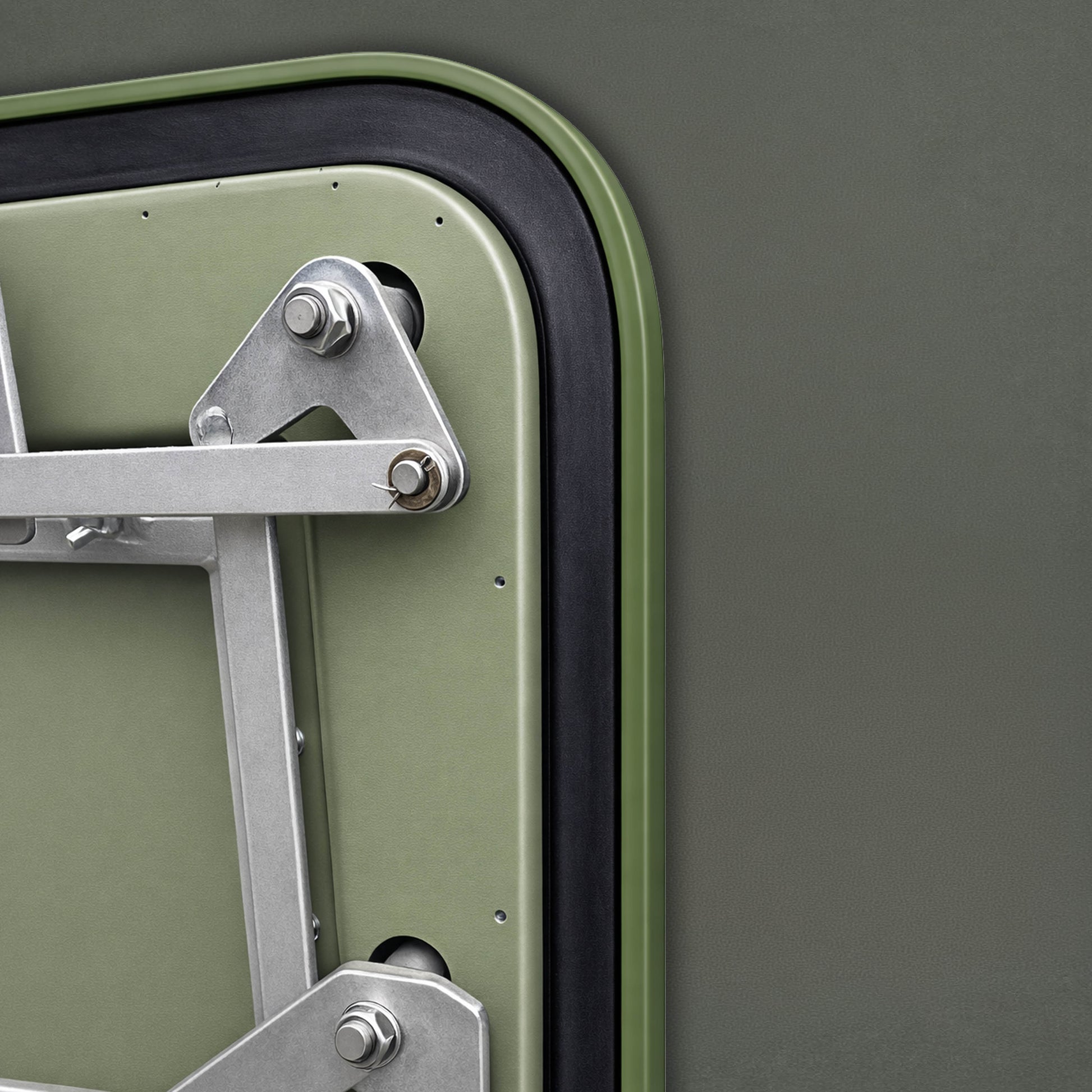

- Doors are sealed with EPDM cord of dimension 40x20 as standard.
- All bolts of hinges and closures are made of stainless-steel type 1.4571. Hinges are equipped with grease nipples M10x1 acc. to DIN 3404.
- Painting follows the Corrosion protection of steel structures by protective paints systems ISO12944.

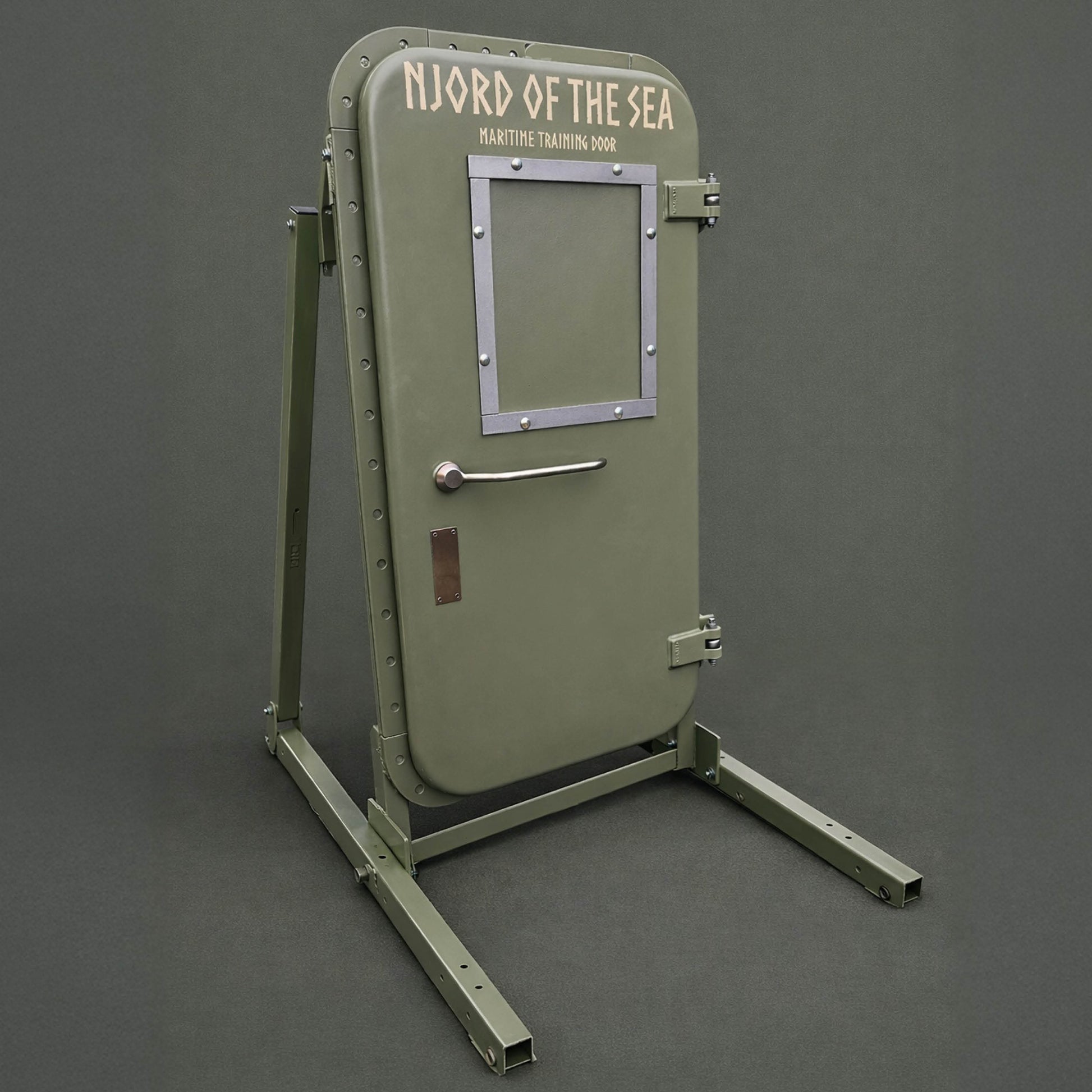

The maritime training door is supplied on an integrated steel pallet, which also functions as a self-supporting door stand. The system can be assembled and disassembled within approximately 15 minutes.
The unique pallet design allows up to five doors to be stacked vertically, optimizing transportation and logistical handling.
An optional “click-on” wheeled mobility kit with steerable casters is available, enabling efficient transport and positioning, including installation on existing vessels.
Start package (Training Door) (this is included in the price for the door)
|
DET-1-111 Front steel plate, 3 mm thickness
|
5 pcs
|
|

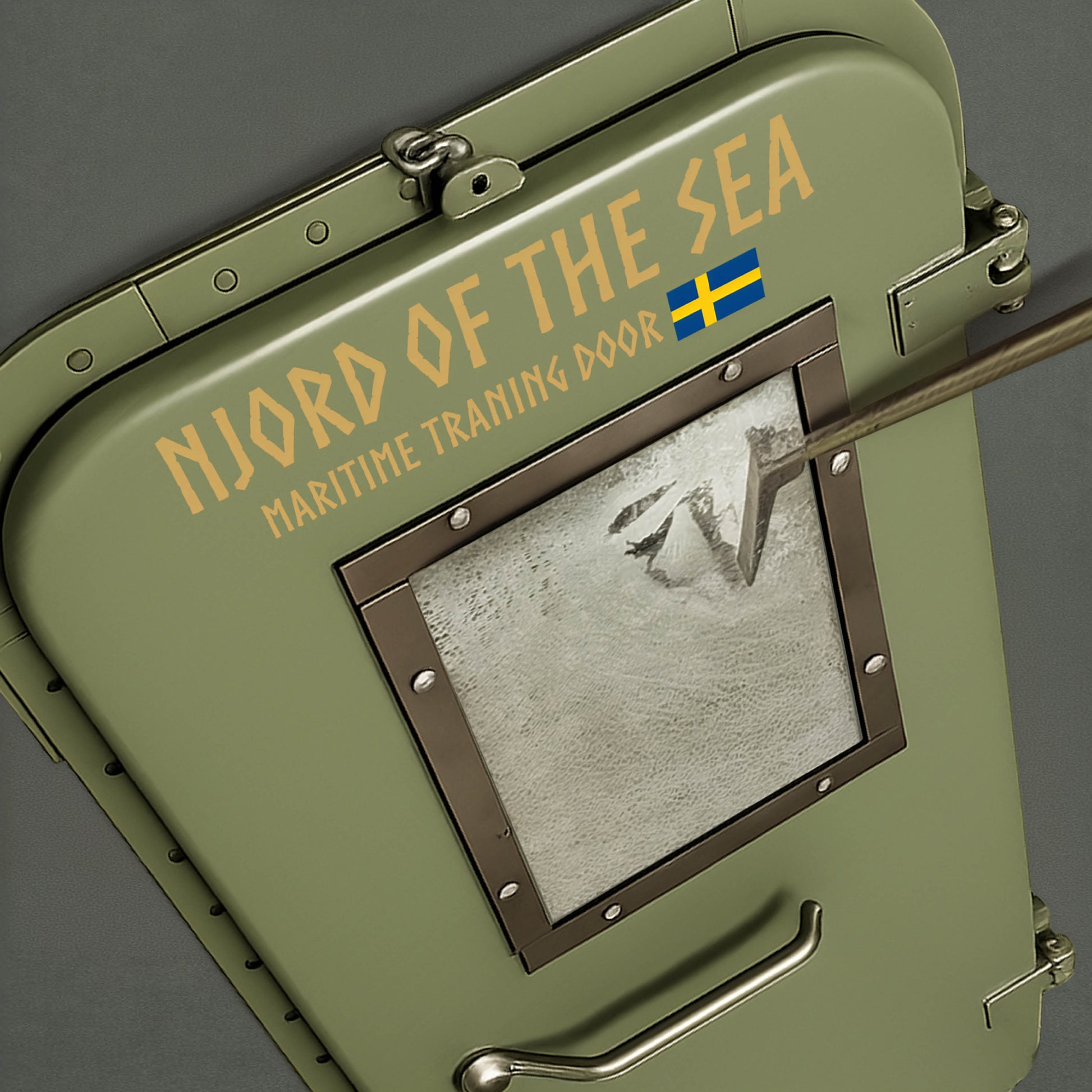

DET-1-113 Ship Door Glass, 12 mm hardened glass
|
1 pcs
|
|

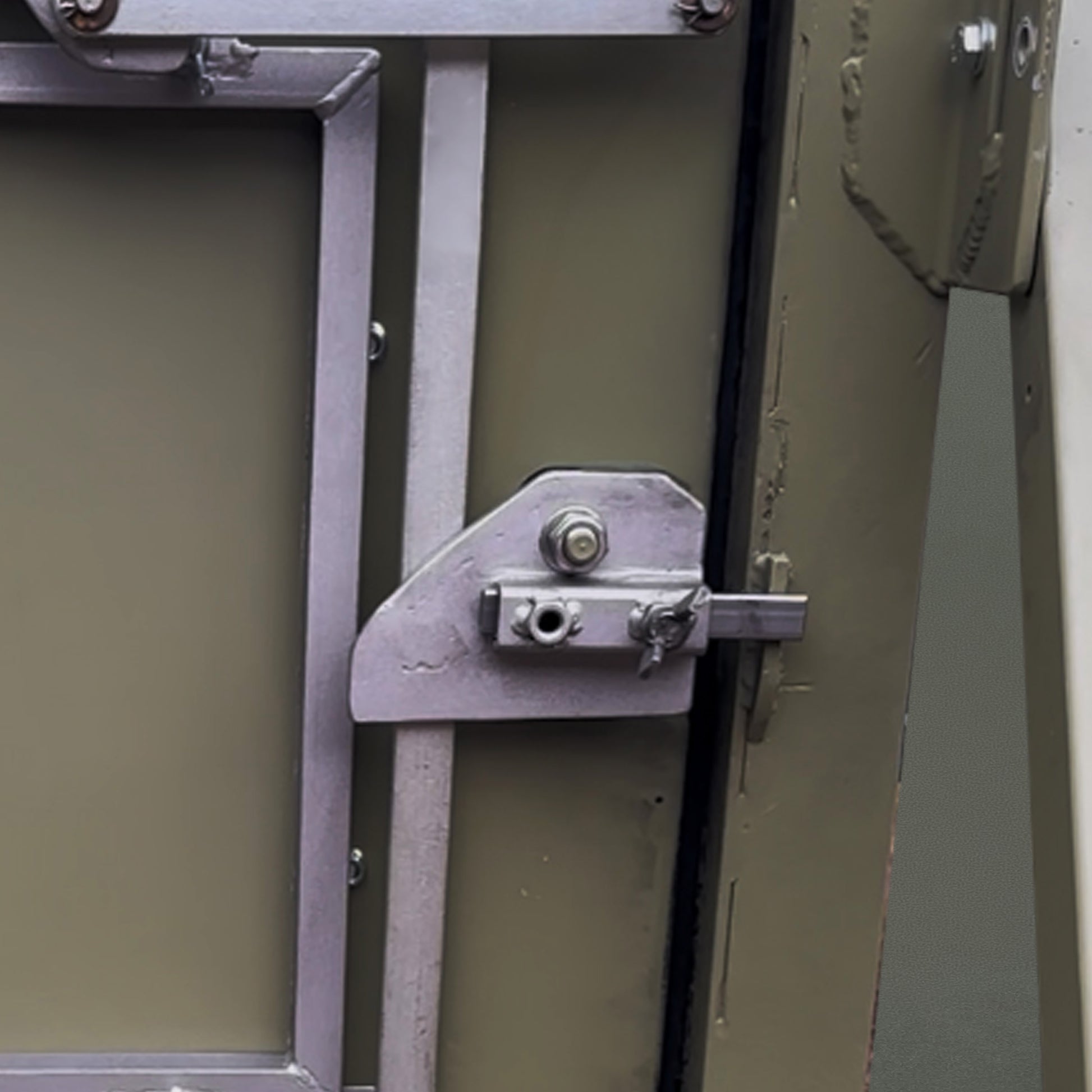

DET-1-114 Steel pipe for hydraulic breaching
|
20 pcs
|
|

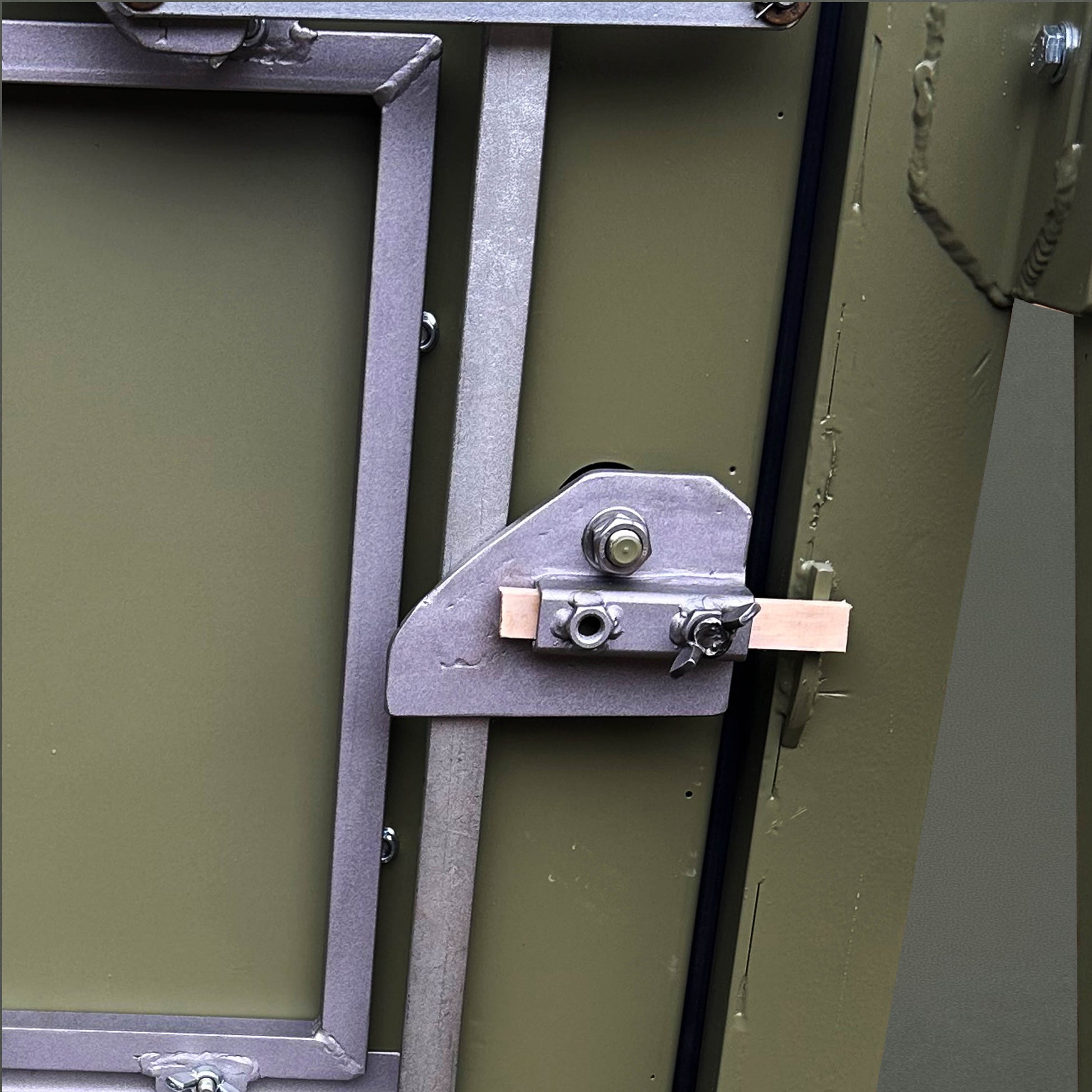

DET-1-115 Wood shims for explosive breaching
|
50 pcs
|
|
DET-1-116 Toolbox
|
|
